An exception handling system for service component architectures

  • Fernando Castor1Email author,
  • Douglas Siqueira Leite2 and
  • Cecília Mary F. Rubira2
Journal of the Brazilian Computer Society201218:59

https://doi.org/10.1007/s13173-012-0059-5

Received: 20 December 2011

Accepted: 16 January 2012

Published: 4 February 2012

Abstract

The Service Component Architecture (SCA) makes it possible to combine existing and new services based on a variety of technologies with components built using a component-based development approach. However, when asynchronous service compositions are executed, one or more errors can occur, possibly at the same time, affecting the dependability of the composition. To guarantee that the composition succeeds or at least fails in a controlled manner, fault tolerance mechanisms must be employed. In this paper, we propose a novel exception handling model that targets the needs of dependable SCA applications. The model is applicable to service-oriented systems and allows the creation of fault-tolerant asynchronous service compositions. The EH-SCA framework instantiates the proposed model as an extension of the Apache Tuscany SCA infrastructure. Developers can apply this instantiation of the model to both new and existing applications by using a simple and flexible aspect-oriented programming model. Finally, a case study of the EH-SCA framework shows how it can be used to build dependable distributed applications.

Keywords

Exception handlingService-component architecturesFault toleranceService-oriented computingCoordinated exception handling

1 Introduction

Service-Oriented Architecture (SOA) is an architectural model that aims to enhance efficiency, agility and productivity of enterprise businesses by structuring services and service compositions [23]. A service is defined as a self-contained distributed unit, composed of two loosely coupled elements: a specification with a provided abstract interface and an implementation. Services can be grouped to be executed in a specific order, either synchronously or asynchronously, resulting in a service composition.

Different software technologies can be used to implement the SOA paradigm, such as Web Services technology, which is based on XML-based standards, like Simple Object Access Protocol (SOAP) and Web Services Description Language (WSDL). SOA can also be implemented using a Service Component Architecture (SCA) [14], which defines a component model for implementing services and service compositions. A service implemented within an SCA component model is called a service component. SCAs support interoperability among various SOA technologies, such as Web Services, WS-BPEL, Java Message Services (JMS), JSON-RPC, CORBA, and EJB.

In particular, when asynchronous services compositions are executed, one or more errors can occur concurrently in different services, possibly at the same time, affecting the composition’s dependability. In this way, fault tolerance mechanisms are necessary in order to prevent services compositions from reaching a failure state. There are two ways to recover a service composition from an error: backward and forward error recovery. The former is based on rolling the system components back to a previous correct state, while the latter involves transforming the system into a new correct state using exception handling mechanisms. Considering that, in the SOA context, it is not always possible to rollback services, since they are by definition autonomous and self-contained units, one must rely on exception handling mechanisms to bring the system to a new correct state, for providing fault-tolerant asynchronous service compositions. However, exception handling mechanisms for asynchronous services compositions should consider the fact that different exceptions types can be raised concurrently by different services at the same time. This means that different combinations of concurrent exceptions might imply in the execution of different combinations of service handlers sets. This complex error handling scenario requires that exception handling mechanisms be flexible and dynamic during runtime. Moreover, some global coordination mechanism for error handling is required, such as Coordinated Atomic actions (CA actions) [26]. A CA action provides fault tolerance by integrating coordinated exception handling, cooperative multithreading, and atomic transactions.

WS-Business Process Execution Language (WS-BPEL) [25], one of the most popular languages to create Web services compositions, does not support fault-tolerant asynchronous service compositions. When a service signals an exception within a composition, all services invocations are terminated as soon as the exception is caught, and a single handler is executed. There is no support for error handling coordination, and concurrent exception handling. Tartanoglu et al. [21] proposes a solution in terms of a structuring unit called Web Service Composition Action (WSCA), based on the concept of CA action without transactional guarantees. However, this solution has some drawbacks. First, for each exception raised by a service, the same exception is delivered to all composition’s participants, decreasing the flexibility for the implementation of handling actions. Second, the recovery process is strongly based on compensation actions, which is not a mandatory feature present in the implementation of a service. Moreover, the proposed solution is based only on Web services technology.

In this paper, we present the design and implementation of a coordinated exception handling model targeting some of the particularities of SCA (Sect. 2.1) systems. It allows the creation of fault-tolerant asynchronous service compositions in a flexible way. Also, considering that SCA systems may be highly dynamic, it supports a flexible notion of exception propagation where recovery rules that dictate how exceptions are propagated can be defined on a per-application basis. The definition of application-specific recovery rules, which are not necessarily based on compensation actions, makes our solution more general and flexible than WSCA [21]. We describe our solution using the primitives and abstractions of the Guardian model [15, 16] for exception handling (Sect. 2.3). Guardian is a general conceptual framework for describing coordinated exception handling models and mechanisms. We have implemented the proposed exception handling model as a framework, named EH-SCA (Sect. 3), which extends the Apache Tuscany SCA platform [12] (Sect. 2.2). The latter is an SCA infrastructure capable of integrating various SOA technologies. To use EH-SCA in their applications, developers can leverage a simple aspect-oriented programming (AOP) [10] programming model that requires little effort to use (Sect. 4). We also provide an example of the usage of the EH-SCA framework to implement a primary-backup system (Sect. 5).

2 Background

2.1 Service component architecture

A software component is a unit of modularity composed of two parts: the specification part, with explicit provided and required interfaces, and the implementation part [20]. A service component provides support for implementing services using components. Each component can implement one or more services, where the service’s implementation is part of the component’s implementation, and the service’s specification is mapped to a component’s provided interface. An implementation defines the materialization of the business logic into a specific technology, including programming languages, like Java, C++, and Ruby, and frameworks and environments, such as Spring and BPEL. A provided interface, referred to as “service” in the SCA context, defines the operations provided by the service component. Moreover, a service component can use required interfaces provided by other service components, known as “references.”

SCA service components can be connected either manually (by a programmer) or automatically (by the SCA runtime environment), using services and references. The communication protocol used between two service components is specified over the SCA “binding” element, which implies that the service component’s communication infrastructure is separated from the business logic implementation, enhancing the service component’s reusability.

The specification of compositions and service components is based on a XML-based language called Service Component Definition Language (SCDL). In Fig. 1, a composition named MyComposition connects the CalculatorComponent and AddServiceComponent service components, both implemented with Java (implementation.java, lines 4 and 12), over a Web services-based communication (binding.ws, lines 7 and 15). Note that the AddService reference (line 5) in CalculatorComponent matches the service provided by AddServiceComponent (line 13), since both have the same interface AddService.
Fig. 1

Example of a composition described through the SCDL

In terms of error handling, SCAs pose a number of challenges. First of all, SCA systems are essentially service-oriented. They may span different administrative domains and comprise services whose implementations are not available or that are hosted by different organizations. As pointed out previously [21], error recovery mechanisms cannot make assumptions about the recovery capabilities of these services. In this scenario, it is not possible to employ a rollback-based approach. Second, services can be invoked asynchronously and errors may be signaled concurrently. Since it is usually not safe to assume that concurrently signaled errors are independent, some means for coordinating error recovery are necessary. A third challenge is that SCA systems can integrate a number of different technologies with different features and based on different standards. In this sense, SCA differs from Web services, since the latter are only one of the technologies that can be used in applications based on the former. An exception handling model for SCAs must be generic and flexible enough to support service compositions involving diverse technologies. At the same time, it has to be well-integrated with the underlying SCA platform, the infrastructure that mediates the interactions amongst the parts of the composition. Finally, the exception handling model must work in a dynamic setting, because components may fail or become temporarily unavailable due to failures, upgrades, reboots, etc., services may be taken out since they can be hosted by different organizations, and application needs may trigger reconfigurations, which imply different interactions and, hence, different sets of parts to be involved in coordinated error handling.

2.2 Apache Tuscany—an SCA platform

Apache Tuscany1 is a platform for developing SCA-based applications. It aims to allow developers to focus on the business logic of the applications, without having to worry about communication and interoperation issues. At a very high level, the Tuscany SCA can be divided into a core infrastructure and a set of extensions which make the core capable of working with various technologies [12]. The Tuscany SCA runtime environment was designed to encompass a large range of existing technologies, as well as new, emergent ones. Figure 2 provides an overview of the runtime architecture of Tuscany.
Fig. 2

Tuscany’s runtime architecture

Tuscany’s runtime environment has a modular and pluggable architecture so users can choose the functionality that they need. The Composite Application block represents the business application built with Tuscany and described using the XML-based SCA assembly model (Sect. 2.1). Tuscany Extensions are implemented by using the Tuscany SPI (Service Provider Interface), which offers a modularized way to define bindings, databindings, implementation types, policies, and interface types. Bindings provide support for different kinds of communication protocols. Databindings provide support for different data formats for communication among services. Implementation types provide support for different programming languages and container models. Policies provide flexibility to adjust architecture concerns, such as security and transactions, without impacting the business logic code.

To run an SCA business application, the first step the Tuscany runtime takes is to load and configure the SCA SCDL file. The various SCDL file artifacts are inspected, and factory methods help instantiate the various objects, which represent the service components in memory. The next step is to instantiate the runtime wires that connect the components. In this phase, runtime wires are created for component references and component services over the mentioned bindings in the SCDL file.

A runtime wire is a collection of invocation chains. Each invocation chain consists of a set of invokers and interceptors. Invokers provide the invocation logic to binding protocols and implementation technologies, while interceptors are a special kind of invoker that provides additional functionality, such as data transformation, security, and transaction control. The runtime environment creates an invocation chain for each operation in a service/reference interface [2].

Figure 3 shows a schematic view of the Tuscany SCA invocation architecture, where service component A invokes, via a reference, an operation provided by a service implemented by service component B, using a specific binding. When the service component A invokes an operation of B, the Tuscany runtime creates and associates a runtime wire with the service, and another with the reference. An SCA handler determines which invocation chain within the reference’s runtime wire is associated with the invoked operation. Parameters passed to the method that represents the invoked operation are used by invokers and interceptors, creating a proper message to be sent over the chosen communication protocol. On the receiving component, a listener takes the message from the underlying protocol and routes it to the correct receiving component’s invocation chains. The correspondent operation (implemented by a method or function) is executed and, if there is a return value, the reverse path is taken back to the caller component.
Fig. 3

Tuscany SCA invocation chain

2.3 The guardian model of exception handling

The guardian model is a set of primitives, responsibilities, and mechanisms aimed at supporting the definition of exception handling models, in particular ones that require coordination. It is based on the notion of global exception handling, in which a distributed global entity called “guardian” orchestrates the exception handling actions for each involved participant. This is achieved by raising an appropriate exception in each participant. The guardian model uses specific application-defined recovery rules to determine which exception should be raised in each participant. The raised exception in turn causes the exception handler to be invoked [16]. Figure 4 shows a conceptual vision of the Guardian model, as well as its main elements: exception context, guardian members, guardian group, guardian primitives, recovery rules, and resolution trees.
Fig. 4

Schematic view of the guardian model

An exception context corresponds to an application specific execution phase or region of a program, which has a symbolic name and a handler associated with it (e.g., in Java, a try-catch block). There are three kinds of exception contexts: signaling context, raising context, and target context. The first one is the context a participant is in when an exception is signaled within it. The second is the context a participant is in when an exception is raised in it. Finally, the target context is the context in which an exception is handled. Furthermore, as depicted in Fig. 4, the communication occurs among participants and guardian members, and guardian members and the guardian group, where a guardian member is a logical replication of the guardian associated with each participant. A set of operations, called guardian primitives, are used as the communication channel. The guardian primitives are responsible for controlling contexts (enabling and removing a context) and exception propagation (throwing global exceptions) at runtime and checking whether there are any pendent global exceptions to be delivered to a specific participant. In a coordinated exception handling mechanism, a global exception is an exception that needs to be handled cooperatively by a set of participants. On the other hand, an exception that can be handled locally within a participant is called local exception [15].

When one or more different exceptions types are raised concurrently, the guardian uses a resolution tree mechanism to find a resolved exception. Finding a resolved exception consists of searching for the lowest common ancestor in a resolution tree, which establishes a hierarchy among a set of exceptions that can be raised concurrently. Since the resolved exception is found, the guardian relies on the recovery rules to determine which exception should be raised in each involved participant, as well as the proper target context.

3 The EH-SCA framework

In this section, we describe the proposed exception handling model in terms of the abstractions and primitives of the Guardian model. Concomitantly, we present our implementation of these abstractions and primitives, the EH-SCA framework, as an extension to the Apache Tuscany platform. Then, in the next section, we present the EH-SCA programming model, which leverages aspect-oriented programming techniques to simplify the definition of handlers and their association with specific points of an SCA system.

In the current version of EH-SCA, the components that signal, raise, and handle exceptions should be written in Java. To make EH-SCA language-independent would require more in-depth understanding of Tuscany’s internals and a larger implementation effort. Since we organize EH-SCA in terms of the primitives of the guardian model, which is language-independent, we can say that it does not rely on the specifics of the Java language. At the same time, an SCA application whose components employ multiple technologies can still use EH-SCA, since Apache Tuscany can make these components communicate employing different technologies, such as WS-BPEL, JSON-RPC, and Web Services. In scenarios where third-party services must be integrated in a fault-tolerant manner by using EH-SCA, service components written in Java are responsible for raising and handling the exceptions. This does not limit the applicability of the proposed model and implementation. The composition of third-party services can be performed by using EH-SCA-based service components as proxies for the composed services, since it is not be possible to modify the composed services.

Figure 5 presents the overall structure of a fault-tolerant composition that uses EH-SCA. The Guardian is an instance of a new implementation type, impl.guardian, responsible for implementing the exception handling model. It manages exception handling contexts, exception propagation, and exception resolution. Each participant component (P1-N) is connected to the guardian by means of a guardian member (GM1-N). EH-SCA implements guardian members as policies (Sect. 2.2) and exceptions as regular Java types. In the remainder of this section, we present the elements of EH-SCA.
Fig. 5

Overview of the components of the EH-SCA framework

3.1 Exception representation

We define exceptions as classes that extend the GlobalException class. These exceptions are global, i.e., they flow between different service components. Instances of GlobalException carry the information of which participant has raised the exception, the context in which this exception was raised (the signaling context), as well as the context in which the exception should be handled (target context). The model also predefines some membership global exceptions, such as JoinException and LeaveException. A JoinException is raised when a new participant joins a group (Sect. 3.2). In a similar way, a LeaveException is raised when a participant leaves the group. These exceptions are useful to maintain compatibility with the Guardian model.

A program raises a global exception by calling the gthrow() method (Sect. 3.2). This method is homonym to the primitive of the Guardian model responsible for signaling a global exception. In our Java implementation, local exceptions are raised by using the throw statement. We do not impose any constraints on how exceptions are represented within a component since programming languages employ different approaches for exceptions. Some of them, such as C, do not have the concept of exception nor anything similar to it.

The signatures of the services in component interfaces should explicitly indicate the exceptions they raise. During composition, the compiler should check whether clients of these services handle these exceptions and, if they do not, produce an error message. In other words, global exceptions are checked exceptions. A number of modern programming languages, such as C#, Scala, and Go, do not use checked exceptions because of their well-known maintainability issues [24]. Nonetheless, we consider that explicitly indicated exceptions provide useful documentation. In addition, they represent part of the contract that users of a service must be aware of. Furthermore, due to compiler support, they can improve system reliability by emphasizing the need for errors to be handled. Finally, if checked exceptions are employed only at the component interface level, changes to such interfaces do not necessarily imply global changes as would be the case for finer-grained checked exceptions.

3.2 Exception handling contexts and coordination

The guardian group is the central entity responsible for mediating the interaction between participants of a composition when errors occur during its execution. The guardian group provides an interface to enable and disable raising, signaling, and handling exception contexts. In EH-SCA, the guardian group is itself a service component.

Each participant is associated with a set of exception handling contexts, enabled dynamically, at runtime, and explicitly, by the application. Nonetheless, applications can enable and disable contexts in a nonintrusive way, without the need to modify the source code of preexisting service components. When one or more global exceptions are raised within a context, all the participants where that context is enabled are involved in coordinated error recovery. In the proposed model, contexts are always associated with sets of participants and may be nested, similarly to Java’s try blocks (although the latter define static scopes). As discussed in the previous section, for SCA systems, it does not make sense to define finer-grained, intracomponent exception handling contexts since components might be implemented using radically different technologies and languages.

The guardian group (or simply guardian) element was implemented as an implementation type called “implementation.guardian” using the Tuscany SPI (Sect. 2.2). Figure 6 depicts the pseudoschema of this new implementation type. Note that the configuration is done through the “guardianProperties” element (line 2). The recovery_rules (line 3) and resolution_trees (line 4) attributes allow the definition of the recovery rules and resolution trees, respectively.
Fig. 6

Pseudo-schema for the “implementation.guardian” type

Figure 7 shows the GuardianPrimitives interface implemented by all guardian service components. This interface defines operations that are used to establish communication between participants and guardian members, and guardian members and their respective guardians, where a participant is implemented as a service component. It is important to stress that the implementation of GuardianGroup is internal to EH-SCA; applications to not need to implement this interface.
Fig. 7

Interface of a guardian group component

The first two methods control exception contexts. The enableContext() method adds and enables a context c in a LAST-IN-FIRST-OUT (LIFO) context list associated with a participant. The removeContext() method removes the last added context in same list. The Context class implements the concept of exception context, aggregating a name and a list of exceptions that can be handled in the context.

The gthrow() and propagate() methods control the flow of global exceptions. The first one was explained previously and is used by a participant to throw a global exception ex to a set of participants specified in participantList. The invocation of gthrow() causes the suspension of all the participants listed in participantList, as well as the interruption of the invoker participant. The propagate() method determines whether the global exception ex should be handled in the current context or propagated to an upper level context. In other words, the method compares the current context with the target context specified in ex. Since the guardian does not have control over the exception flow inside the participant, the existence of the propagate() method is necessary.

At last, the checkExceptionStatus() method allows a participant to check the existence of any pendent global exception that needs to be handled. It is executed periodically by the participants. If there are any global exceptions to be delivered, they are raised within the participant. Otherwise, the method simply returns.

3.3 Handler attachment

In the proposed model, exception handlers can be attached to local or global contexts. Local contexts are the contexts that the underlying programming language implements. In EH-SCA, a local context corresponds to a block of statements, the only kind of exception handling context that Java supports, by means of try-catch blocks, where the catch blocks are local handlers. Local handlers address internal exceptions. Handling these exceptions does not require a coordinated approach.

In broad terms, we consider that global handlers can be attached to sets of service components taking part in a composition. At the same time, participants of a composition can have multiple global exception contexts associated with them. For each context, it is possible to attach a number of exception handlers. In fact, there are no bounds on the number of contexts per service component, nor on the number of exception handlers per global context. When a global exception is signaled by a method, it is passed on to the guardian. The latter, based on its recovery rules (Sect. 3.4), decides which exception will be raised in each participant of the composition and the context where this will happen. An exception handler is triggered in a service component if it has an exception handler attached to the selected context and targeting the raised exception.

In EH-SCA, a handler is any subclass of the AbstractHandler class. The latter defines the execute() method, which receives a single argument of type GlobalException and implements the handler logic. Components in an application that uses EH-SCA should extend the HandlerContainer class. This class implements methods for managing the handlers attached to the contexts enabled in a service component. We more carefully describe the implementation of exception handlers in EH-SCA in Sect. 4.

3.4 Exception propagation

Exception propagation is a difficult issue in service component architectures. As pointed out in Sect. 2.1, exceptions must be propagated in nonstandard ways because SCA systems are intrinsically dynamic due to user needs, heterogeneous technologies, administrative issues, and the distributed setting in which they run. As a consequence, SCA systems require more flexible policies for exception propagation, to make it possible to deal with situations such as the enabling and disabling of exception handling contexts at runtime or simply the unavailability of certain service components.

In the proposed model, recovery rules determine the exception propagation paths in an application. They establish the destination of an exception raised in a set of contexts associated with a set of participants. These rules also determine the exception that will be handled by each participant of a guardian group involved in coordinated exception handling. To better cope with the dynamism of SCA systems, recovery rules can be enabled and disabled at runtime. Hence, the propagation paths in an application can be modified dynamically, orthogonally to its structure, as required during its execution. To the best of our knowledge, this is the first exception handling model to provide this kind of flexibility to software developers.

In the EH-SCA framework, recovery rules are defined by an XML-based language whose pseudoschema is shown in Fig. 8. The rule element (line 2) defines a named (via the name attribute) rule and the exception to which that rule is applied (via signaled_exception attribute). Each rule can select one or more sets of participants in order to signal a new exception. This is accomplished via the participant element with a regular expression assigned to the match attribute (line 5).

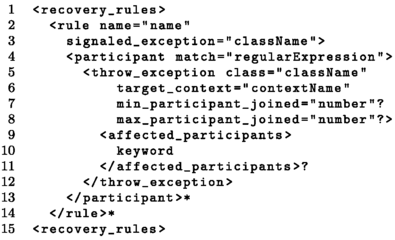

Fig. 8

Pseudo-schema for the definition of the recovery rules

Each participant has a dot-separated identifier defined by the elements in its context list. The same structure is applied for building the regular expression associated with the match attribute, where the character “*” can be used as a wildcard, meaning that it does not matter the context the participant is. Also, the keyword SIGNALER can be used to retrieve the participant that has raised the referred exception.

The exception that should be raised in the selected participants is determined in the throw_exception element (line 4), where the exception class is specified via class attribute and the context where the exception will be handled via the target_context attribute. The min_participants_joined and max_participant_joined optional attributes represent, respectively, the minimum and maximum number of participants that must join the guardian group for the exception to be delivered to the selected participants. Finally, the affected_participants optional element (line 9) yields a subset of the selected participants, for example, the first (FIRST keyword) or the last (LAST keyword) in the selected participant list. The order of participants in the list is determined by the order in which the guardian receives the requests for association.

3.5 Exception resolution

The proposed model, analogously to previous approaches [26], uses exception resolution trees to determine which exception represents a set of exceptions raised concurrently in a certain context. In summary, the exceptions that can be raised in a system are organized as the nodes of a tree. When two or more exceptions are raised in a given context, the tree is looked up to find a node E that has all of the raised exceptions as its children. E is then called a “resolved exception” and it is the exception sent to all the participants in involved coordinated error recovery. On the other hand, the resolved exception may undergo a transformation before it is delivered to each participant of the composition. This transformation is useful to allow independently-developed exception handlers to work as a unit because they may have been defined in terms of different exception types. As a consequence, after resolution, a number of different exceptions can be delivered to the various handlers. The transformation of resolved exceptions is defined by means of recovery rules, more specifically, the throw_exception element of Fig. 8.

The model supports the definition of various resolution trees, associated with different levels of an application. The usage of levels allows the establishment of semantic relationships among different sets of exceptions. The set of resolution trees in an application is defined using a XML-based language, as shown in Fig. 9. Currently, our implementation supports only one exception level. The resolution_tree element (line 2) defines a resolution tree for a given level, defined by the exception_level attribute. The tree itself consists of a hierarchy of exception types built using the exception element (line 3).
Fig. 9

Pseudo-schema for the definition of the resolution trees

The guardian is responsible for finding a resolved exception when two or more exceptions are concurrently raised in a composition. Exception resolution uses the types of the raised exceptions, organized in a type hierarchy (using the exception_resolution element). Considering the types of the concurrently raised exceptions and the exception type hierarchy, exception resolution finds the lowest common ancestor of the types of all the exceptions. EH-SCA employs the algorithm of Bender and Farach [3] to find the common lowest ancestor. Considering the exception type hierarchy of Fig. 10, at initialization time, EH-SCA conducts three steps. Initially, the tree is traversed depth-first. Each node is included in a vector, E, each time it is visited. Therefore, for the hierarchy of Fig. 10, we would obtain the following:
$$E = \{ \mathsf{N0,N1,N3,N1,N4,N1,N0,N2,N5,N2,N6,N2,N0} \}$$
Afterward, we compute the depth of each node in the tree. For each position that a node occupies in E, we record its depth in the corresponding position of the L vector:
$$L = \{ 0,1,2,1,2,1,0,1,2,1,2,1,0 \}$$
Fig. 10

An example of exception type hierarchy

For example, E[2]=N3 and L[2]=2, the depth of node N3. Finally, we build the R vector, which contains the position of the first occurrence of each node in E. Each position in R corresponds to a node in the exception type hierarchy. The order of the nodes in R is the order in which the nodes would be traversed in a breadth-first search.
$$R = \{ 0,1,7,2,4,8,10 \}$$

In the event that two exceptions are concurrently raised, EH-SCA first obtains the values stored at the corresponding positions of R. It then uses these values as indexes for vector L. The lowest depth appearing between these values in L is the depth of the resolved exception. EH-SCA obtains it by inspecting the corresponding position in vector E. Both the time required to construct the E, L, and R vectors and the time to perform exception resolution are linear with the number of nodes in the tree.

3.6 Guardian member

In EH-SCA, the guardian member is an infrastructure element responsible for mediating communication between participants of a composition and the corresponding guardian. It is not part of the exception handling model, strictly speaking, but it is necessary to ease the burden on software developers. We implemented guardian members in Apache Tuscany SCA as a new policy type (Sect. 2.2), more specifically, a new intent: guardianExceptionHandling. An intent is an abstract policy that can affect component interactions but does not include any deployment information. Figure 11 presents the definition of the guardianExceptionHandling intent. The constraints attribute (line 3) specifies that the intent applies to the references of a Java component. When guardianExceptionHandling is enabled for a participant, an interceptor is created in the invocation chains associated with the methods of the references to which the intent is associated. This interceptor is responsible for invoking the guardian member corresponding to the participant.
Fig. 11

Definition of the guardianExceptionHandling intent to abstract guardian members

Figure 12 shows how guardian members fit within the structure of an EH-SCA service composition. To obtain the instance of the guardian member associated with each participant (an instance of type GuardianMemberImpl), each interceptor employs the GuardianMemberFactoryImpl factory. The internal usage of factories ensures that a single guardian member is created for each service component participant of a fault-tolerant composition.
Fig. 12

Guardian members represented as an interceptor within the invocation chains

The usage of a policy avoids the need to explicitly declare the guardian members in the SCDL file. At the developer side, a service component participant communicates directly with the guardian (another service component). However, this communication is mediated by an interceptor that hides the guardian member logic, and the defined communication model is held: participants ↔ guardian members, guardian members ↔ guardian group.

As an alternative to using a policy to implement guardian members, we could have implemented guardian members as service components. In this scenario, GuardianMemberImpl would need to implement a hypothetical GuardianMember interface which extends GuardianPrimitives (Sect. 3.2). Moreover, it would have a reference to the guardian service component. This approach has two drawbacks. The first one is that there is a runtime overhead due to the need to manage extra service components. A policy is much cheaper than a component. The second one is that developers of service-oriented applications would then need to be aware of guardian member components, declaring them in the SCDL file. By using policies to represent the latter, developers only indicate the participants of a fault-tolerant composition, associating them with the guardianExceptionHandling intent.

4 AOP programming model for EH-SCA

The EH-SCA programming model, as the guardian programming model defined originally by Miller [15, 16], consists of the invocation of the guardian primitives by a participant using a predefined programming pattern. The way in which participants invoke the guardian primitives depends on recovery actions implemented in the application logic. However, a general structure based on the conversation concept [17], that is suitable to a large range of applications, is depicted in Fig. 13.

The code snippet enables a context within a scope, checks for any pendent global exceptions, executes the application-specific code, and then removes the enabled context. There is also a handler for each global and local exception that can be raised, respectively, by the checkExceptionStatus() guardian primitive and by the application-specific code. The problem with this approach is that application logic is tangled with error recovery code. Ideally, the parts of the code that enable and disable contexts, and handle exceptions should be separated from application code [1]. In this manner, it becomes possible to change exception handlers without affecting application-specific parts of the code. At the same time, one can reuse exception handlers across components within the same application, in order to avoid duplication [22].

Using AOP, Java annotations, and a predefined class hierarchy, it is possible to separate the normal application-specific code from the exception handling code, i.e., the invocation of the guardian primitives and Java handlers. Moreover, this solution enables services to be easily reused and reduces the syntactic overhead that EH-SCA imposes on applications. Application developers only need to directly interact with EH-SCA in two ways: (i) by throwing or propagating exceptions with gthrow and propagate; and (ii) by annotating the relevant methods (see below). The main elements of the EH-SCA programming model with aspects are depicted in Fig. 14.
Fig. 14

The main elements necessary to use EH-SCA following a conversation-based structure with separation between the normal and exceptional code

Assuming that the scope of the structure of Fig. 13 is the scope of a method, the Context annotation is used to specify the context that will be enabled, at the beginning of the method, and disabled at the end. The name of the context is specified by means of the name attribute, whereas the exceptions attribute lists the exceptions that are handled at that context. On the other hand, the Checkpoint annotation specifies when EH-SCA should invoke the checkExceptionStatus() primitive (Sect. 3.2), before or after executing the method. Two values are possible for this annotation: CheckpointPositions.BEFORE or CheckpointPositions.AFTER.

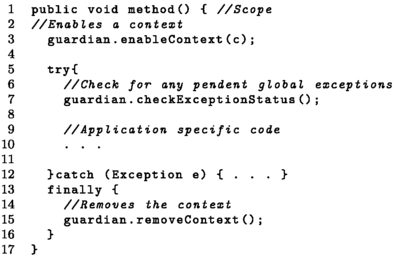

Fig. 13

Conversation-based structuring pattern using the guardian primitives

The HandlerContainer abstract class implements a number of operations to manipulate global exception handlers. These operations support the retrieval, attachment, and deletion of handlers (Fig. 14) associated with contexts of a service component. The main class implementing each service component must be a subclass of HandlerContainer in an application that uses EH-SCA. In addition, the class must provide an implementation for the getGuardianReference() abstract method to make the guardian accessible.

As briefly mentioned in Sect. 3.3, the AbstractHandler abstract class represents a generic handler for GlobalException. Application-specific exception handling strategies for a certain context are realized by implementations of the execute() abstract method. The remaining methods of AbstractHandler provide: (i) the Class object corresponding to the type of the handled exception; and (ii) the actual parameters of the method to which the Context annotation is linked. EH-SCA provides an implementation for AbstractHandler, the DefaultHandler class. The latter provides constructors that developers can use to pass information to the handler, and an empty execute() method.

The AssemblerAspect aspect combines all the aforementioned elements. It intercepts the execution of application-specific methods annotated with Context and Checkpoint in subclasses of HandlerContainer and uses the handler management methods to integrate normal and exceptional behavior. Using the aspect-oriented programming model involves the following steps: (1) to make the main class of a participant service component a subclass of HandlerContainer; (2) to implement the getGuardianReference() method so as to return the guardian; (3) to define a set of exception handlers as subclasses of AbstractHandler, attaching them to service components by means of the addHandler() and setHandlers() methods (Fig. 14); and (4) to annotate each method that takes part in a context where exceptions are handled with the Context and Checkpoint annotations.

Figure 15 shows what a method looks like as a consequence of the AOP programming model. The method implementation itself includes the code implementing the application logic. It may also invoke gthrow and propagate. The annotations provide all the information about contexts, handlers, and the moment when the runtime verifies whether an exception was received. The error handling concern in this case is textually separated from the application logic. This separation can be further improved if the developer decides to use AOP to introduce the annotations [11]. In this case, exception handling code is completely separated from the normal application code, improving maintainability and reusability.
Fig. 15

Using the EH-SCA aspect-based programming model

5 Case study: primary-backup system

This section describes how to use EH-SCA, including the AOP programming model, to implement a primary-backup structuring technique in a client-server application. The primary-backup approach is well known in the fault tolerance literature and, as a consequence, a good showcase for the capabilities of EH-SCA. Moreover, previous work on the Guardian model [16] has employed a primary-backup system as a case study.

5.1 System description

Figure 16 presents an overview of a client-server system that employs the primary-backup technique with three backup replicas. In this application, a server receives requests from a client, processes them, and sends a response to the client. The fault tolerance mechanism consists of replicating the server so that, when the primary server fails, a backup assumes the primary role. For each request, the backups receive the updated primary server state in order to update its own state, maintaining replica consistency.
Fig. 16

Overview of a client-server system that employs the primary-backup technique

Using the EH-SCA framework, each primary/backup is implemented as a service component, and its role behavior is controlled by the guardian coordinator. Figure 17 shows part of the SCDL file for the server application side using the primary-backup technique. The component ServerNode1 (lines 2–10) describes a server node that can be used either as a primary or backup. The component, implemented in Java, exposes the ServerNodeInterface service interface used for establishing the communication with different server nodes by the matching with its nodes reference. Further, each server node communicates with the GuardianComponent (lines 12–18) through the guardian reference. This reference requires coordinatedExceptionHandling, ensuring that the guardian members will be created and intercept the communication among a participant and the guardian.
Fig. 17

Application server side description over SCDL

Since a server node can assume the role of a primary or backup, three different contexts were defined: MAIN, PRIMARY, and BACKUP. The MAIN context represents a configuration context where the server node is set up to operate as a primary (the PRIMARY context is activated) or backup (the BACKUP context is activated). The contexts are associated to methods through the Context annotation. Figure 18 shows the primaryService method, which provides the business logic of a primary server. The method implements only the normal behavior, which consists of: (1) processing the client request; (2) sending the new state to the backups node, and (3) sending the reply to the client.
Fig. 18

Description of the primaryService method

In a similar way, the backupService method, shown in Fig. 19, carries the business logic of a backup server. The method simply applies the updates received from the primary server.
Fig. 19

Description of the backupService method

When the operations primaryService() and backupService() are invoked, the assembler aspect intercepts their execution and combines the normal code with the exceptional code. The exceptional code is provided by the definition of handlers, subtypes of AbstractHandler, that are stored in the component through the use of the inherited HandlerContainer operations. Table 1 shows the global exceptions that can be raised in each participant, as well as their meanings. Note that the same exception can be raised in one or more different contexts.
Table 1

Global exceptions and the contexts in which they need to be handled

Exception

Context

Meaning

PrimaryFailedException

MAIN, PRIMARY

Internal primary server error

PrimaryExistsException

MAIN

Indicates the existence of a primary server

BackupFailedException

MAIN, PRIMARY, BACKUP

Internal backup server error

BackupJoinedException

PRIMARY

Indicates that a new backup has joined in the group

Also it is necessary to specify how the handlers are activated. The recovery rules in Fig. 20 are responsible for this.
Fig. 20

Recovery rules associated to the primary-backup application

5.2 Execution scenarios

A normal execution of the application with no internal errors in the server nodes follows these steps: the ServerNode1 component is started in the MAIN context, causing the raising of a JoinException by the guardian. Rule1 is executed, but no exception is delivered since there is not a minimum of participants joined in the group. Thus, the component reaches the MAIN.PRIMARY context. When the ServerNode2 component starts executing, the raising of the JoinException causes the delivery of a BackupJoinedException to be handled in the PRIMARY context of ServerNode1, and a PrimaryExistsException to be handled in the MAIN context of the ServerNode2. When an invocation of checkExceptionStatus() triggers the raising of exceptions in the service components, the proper handlers are activated and the ServerNode1 updates its backup list, while the ServerNode2 reaches the MAIN.BACKUP context.

If an internal error occurs in the primary server, an exception of type PrimaryFailedException is signaled to the guardian, where the Rule2 is executed. The guardian delivers a PrimaryFailedException to the ServerNode1 and ServerNode2, but with different target contexts: INIT and MAIN, respectively. When the checkExceptionStatus() is invoked within both service components, an interruption is caused in ServerNode1. At the same time, ServerNode2 becomes the new primary server by executing the proper handler for PrimaryFailedException associated to the MAIN context. In case of a backup failure, a similar path is executed over the recovery rule Rule3. At the end, the primary removes a backup from its backup list, and the failed backup node is interrupted.

It is important to emphasize that exceptions are signaled to the guardian through the use of the gthrow() guardian primitive. In fact, the EH-SCA programming model with aspects hides most of the details related to the guardian primitives programming. However, some of them still need to be invoked explicitly. The same applies to the propagate() primitive. The latter is necessary to make exceptions reach their intended contexts. Further, the INIT context is a top-level context defined by the guardian in an application.

The most interesting scenario occurs when two or more components fail at the same time. In this case, a set of concurrent exceptions is signaled to the guardian, which relies on the resolution tree to find a common exception to be handled. Figure 21 shows a possible resolution tree to the primary-backup application. Assume that the primary server and a backup server fail simultaneously. In this case, a PrimaryFailedException and a BackupFailedException are signaled to the guardian. Since they arrive within the same time frame, the guardian considers them as concurrent exceptions and checks the resolution tree to obtain PrimaryBackupFailedTogetherException. This exception is delivered to the recovery rules, and Rule4 is executed, interrupting the failed primary and backup servers and setting up a new backup to assume the primary server role.
Fig. 21

Resolution tree associated to the primary-backup application

It is important to stress that, without the resolution tree, the guardian would process the exceptions sequentially. If PrimaryFailedException is processed first, the primary server will be interrupted and the first backup in the list will became the new primary. However, the backup is down, and will not be able to assume the primary role. If BackupFailedException is be processed first, a similar problem occurs: the primary receives a notification indicating the failure of the backup but the primary itself has failed as well. As a consequence, the backup list is not updated, and the new primary sends messages to a failed backup.

6 Related work

Garcia and Toledo [8] present an architecture for the construction of fault-tolerant Web Services. It extends the Universal Description, Discovery, and Integration (UDDI—the standard protocol for publishing and discovering services in Web Service-based systems) protocol to enable quality of service monitoring. This architecture introduces two new elements in service-oriented applications: the monitor and the mediator. The first one detects, notifies, and confines errors, intercepting messages with the goal of analyzing and testing services. It is also responsible for forwarding service invocations to replicas, when necessary. On the other hand, the mediator creates and manages these replicas. This approach leverages replication as a means for fault tolerance. In a similar vein, Chen and Romanovsky [6] introduce a mechanism named WS-Mediator to improve the reliability of Web service integration. The WS-Mediator is responsible for monitoring Web Services, collecting information such as response time and failure rate. Moreover, it applies user-defined policies depending on the information it obtains. Both of these approaches improve the dependability of service-oriented applications. However, none of them uses coordinated exception handling. Also, they are only applicable to Web Services and not to SCA.

In the literature some solutions provided fault tolerance over distributed systems based on the CA action concept. The work by Tartanoglu et al. [21] is based on CA Action concepts without transactional guarantees, resulting in a structure called Web Service Composition Action (WSCA). The WSCA description uses a XML-based language called Web Service Composition Action Language (WSCAL). The solution is implemented using the Web services technology, and is strongly based on the use of compensation actions. In our solution, a wide range of SOA technologies can be used (it is not restricted to Web services), and the recovery rules allow different ways to provide the recovery actions (including compensation actions).

The work of Gorbenko et al. [9] proposes an approach to model reliable Web Services that comprise unreliable components. It uses WSCA as a means to structure Web Services using CA actions. The authors apply the proposed approach to a travel agency case study and claim that this significantly increases the number of successful Web Service requests. Since this work leverages WSCA, it exhibits the same limitations, when compared to EH-SCA.

Silva et al. [18] propose the use of composition contracts, an adaptation of coordination contracts [7] for the definition of concurrent fault-tolerant compositions. A coordination contract is a connection among a set of objects that is governed by rules and restrictions that are necessary for collaboration to ensue. Composition contracts extend coordination contracts by using CA actions without atomicity guarantees to implement fault tolerance. Exception propagation is static in this approach. Moreover, it does not define some aspects of the underlying exception handling model, such as what the granularity of exception handling contexts.

Souchon and colleagues [19] present a model for exception handling in multi-agents system. The model focuses on two problems: (1) preserving the agent programming paradigm, and (2) providing support to cooperative concurrency among the agents. The model implements coordinated exception handling, where resolution is based on resolution functions. However, the recovery rules are fixed, making the model less flexible when compared to the EH-SCA framework. Further, the proposed mechanism is abstract. On the one hand, this means that it may be applicable to systems that use different technologies. On the other hand, it does not consider the peculiarities of real approaches for the construction of distributed systems, in general, or SOA technology, in particular.

Capozucca et al. [4] describe a framework to develop software systems based on CA actions. Their framework, CAA-DRIP, is an evolution of the DRIP framework proposed by Zorzo and Stroud [27] to structure software systems in terms of dependable multiparty interactions. None of them targets the construction of distributed systems. Furthermore, they are not targeted at the integration of preexisting components and employ more constrained exception propagation mechanisms. Later on, Capozucca et al. [5] conducted a survey of existing frameworks implementing the concept of CA actions. Among the frameworks that they examine, only one tackles the problems of SOA technology, the work by Tartanoglu et al. [21], described above.

A preliminary version of this paper appeared elsewhere [13]. It did not discuss exception resolution and handler attachment in detail, nor the AOP programming model. Furthermore, it presented the case study only superficially.

7 Conclusions

In this paper, we have presented the design and implementation of a new exception handling model that targets the so-called Service Component Architectures. We are not aware of any middleware platform, service-oriented or otherwise, that provides support for coordinated exception handling in the way that EH-SCA does. Previous work that described actual middleware platforms did not focus on coordinated exception handling and previous work targeting coordinated exception handling did not cater for middleware platforms.

The first contribution of this paper is to allow the creation of fault-tolerant asynchronous service compositions in a SCA architecture. The second contribution is the development of a framework implementing the proposed model named EH-SCA. The EH-SCA framework defines a way to build applications in a conversation-based structuring unit, hiding the explicit usage of most of the guardian primitives. Our implementation is open-source and distributed under Apache2 license.2

Future work includes extending the resolution trees model to allow the usage of different exception levels and implementing some fault tolerance mechanism in the guardian group element because it currently is a single point of failure. In addition, we would like to conduct an experimental validation of the ability of the framework to structure exception handling in a practical application and how that affects the application’s reliability and performance.
