Open Access

Solving the maximum subsequence sum and related problems using BSP/CGM model and multi-GPU CUDA

  • Anderson C. Lima1,
  • Rodrigo G. Branco1,
  • Samuel Ferraz1,
  • Edson N. Cáceres1,
  • Roussian A. Gaioso2,
  • Wellington S. Martins2 and
  • Siang W. Song3
Journal of the Brazilian Computer Society201622:7

DOI: 10.1186/s13173-016-0045-4

Received: 8 October 2015

Accepted: 6 September 2016

Published: 28 October 2016

Abstract

Background

The maximum subsequence problem finds a contiguous subsequence of the largest sum of a sequence of n numbers. Solutions to this problem are used in various branches of science, especially in applications of computational biology. The best sequential solution to the problem has an O(n) running time and uses dynamic programming. Although effective, this solution returns little information and disregards the existence of more than a maximum subsequence sum. Particularly in DNA analysis, if we find all maximum subsequence sums, we will also find all the possible pathogenicity islands, which are stretches with high possibility of causing some diseases.

Methods

We present new Bulk Synchronous Parallel/Coarse-Grained Multicomputer (BSP/CGM) parallel algorithms, which consider the existence of more than one subsequence of maximum sum, and are able to find solutions to three problems: the longest maximum subsequence sum, the shortest maximum subsequence sum, and the number of disjoint subsequences of maximum sum. To the best of our knowledge, there are no parallel BSP/CGM algorithms for the related problems. Taking advantage of the advent of general purpose graphics processing unit (GPGPU), we implemented our algorithms on multi-GPU with Compute Unified Device Architecture (CUDA) and, for comparison purposes, MPI and OpenMP implementations have also been developed.

Results

The algorithms presented good speedups, as confirmed by experimental results. They use p processors and require O(n/p) parallel time with a constant number of communication rounds for the algorithm of the maximum subsequence sum and O(logp) communication rounds, with O(n/p) local computation per round, for the algorithms of the related problems.

Conclusions

We concluded that our algorithms for the maximum subsequence sum and related problems are unique and effective. We also believe that the BSP/CGM model can guide parallel implementations in modern architectures such as GPGPU/CUDA. As future work, we intend to extend these results to arrays with higher dimensions and compute all maximal subsequences in a given interval.

Keywords

Parallel algorithms Multicore GPGPU BSP/CGM Maximum subsequence sum problem

Background

Given a sequence of n numbers, the task of finding the contiguous subsequence, with maximum sum over all subsequences of the given sequence, is called the maximum subsequence sum problem [2]. We also refer to this problem as the 1D maximum subsequence sum problem. The solution of this problem arises in many areas of science, such as computational biology, where many applications require the solution of the maximum subsequence sum problem. Among these, finding regions of DNA that are rich or poor in nucleotides G and C (CG-content). The GC-content is especially important in the search for pathogenicity islands [9]. Another biological application is the identification of transmembrane domains in protein sequences. This is an important application and represents one of the important tasks to understand the structure of a protein or the membrane topology [12].

The best sequential algorithm for the maximum subsequence sum problem, has O(n) time complexity [2]. Despite being a simple and fast algorithm, it yields little information about the maximum subsequence sum. The output returns only the value of the maximum subsequence sum. The algorithm does not consider the length (number of elements) and existence of more than one maximum subsequence sum. The pseudocode is illustrated in Algorithm 1.

Previous works have reported good parallel solutions for the maximum subsequence sum problem. Qiu and Akl presented algorithms for the 1D (subsequence) and 2D (subarray) versions of the problem [11]. Their algorithms work on interconnection networks (hypercube and star) of length p, using O(n/p+ logp) parallel time with p processors in version 1D [11]. Zhaofang Wen presented a parallel random access machine (PRAM) algorithm using O(logn) parallel time with O(n/ logn) processors [16]. Perumalla and Deo also presented a PRAM algorithm with the same time complexity and number of processors [10]. A Bulk Synchronous Parallel/Coarse-Grained Multicomputer (BSP/CGM) algorithm for this problem was presented by Alves et al. using O(n/p) parallel time with p processors and a constant number of communication rounds [1].

In this paper, we revisit the maximum subsequence sum problem and propose solutions to three related problems: the longest maximum subsequence sum, the shortest maximum subsequence sum, and the number of disjoint subsequences of maximum sum.

As far as we know, there are no parallel BSP/CGM algorithms for these three problems. The basis of our solution involves several variations of prefix sum in parallel [7].

The algorithms use p processors and require O(n/p) parallel time with a constant number of communication rounds for the algorithm of the maximum subsequence sum and O(logp) communication rounds, with O(n/p) local computation per round, for the algorithms of the related problems.

In order to show the efficiency not only in theory but also in practice, the algorithms were implemented on a machine with multiple GPUs using compute unified device architecture (CUDA). We also implemented the algorithms with MPI and OpenMP.

This paper is organized as follows. The “Methods” section defines the basic and related problems, discusses the extension of a solution already known, and presents our proposed BSP/CGM algorithms. The implementations and results are presented in the “Results” section.

Finally, the “Conclusions” section presents the conclusions and future work.

Methods

The problems

The basic problem of the 1D maximum subsequence sum may be defined formally as follows. For simplicity we consider the numbers to be integers. Consider a sequence X n =(x 1,x 2,…,x n ) of n integers. A subsequence is any contiguous segment (x i ,…,x j ) of X n , where 1≤ijn. The 1D maximum subsequence sum problem is to determine, among all possible subsequences, the subsequence M=(x i ,…,x j ) that has the maximum sum \((\sum _{k=i}^{j}x_{k})\) [2]. In the sequence represented in Fig. 1, there are three disjoint subsequences of maximum sum. The first consists of elements (x 1,x 2) with size 2; the second is represented by the element (x 4) with size 1; the third consists of the elements (x 6,x 7, x 8, x 9) with size 4. All have sum equal to 15.
Fig. 1

The three subsequences of maximum sum of X with the same sum [8]

In a given sequence of integers, like sequence X illustrated in Fig. 1, there might be more than one maximum subsequence sum. In this context, at least three new problems arise: the longest maximum subsequence sum, the shortest maximum subsequence sum, and the number of disjoint subsequences of maximum sum. In the first two problems, the size is related to the number of elements that make up the subsequences.

Computational model

In this work we use the BSP/CGM parallel computation model [3, 15]. It consists of a set of p processors, each having a local memory of size O(n/p), where n is the problem size.

The BSP/CGM parallel computing model is a realistic model where special attention is given to minimize communications overheads. This model is particularly suitable nowadays in parallel machines where the overall computation speed is considerably larger than the overall communication speed.

An algorithm in this model performs supersteps (a series of rounds), alternating well-defined local computation and global communication phases, separated by a synchronization barrier. The cost of communication considers the number of rounds required. The implementation of a BSP/CGM algorithm generally presents good results with performance similar to that predicted in its theoretical analysis [4]. Since the MPI library is designed for distributed memory environments, a BSP/CGM algorithm can be mapped into an MPI implementation using the message resources of this library. On the other hand, for the implementation of a BSP/CGM algorithm on a general purpose graphics processing unit (GPGPU) with CUDA, we need to establish the correspondence of computations and communications concepts in this environment. In this context, the supersteps of the BSP/CGM model are represented by sequential invocations of each CUDA kernel. Furthermore, we associate the set of processors of the BSP/CGM model with the set of CUDA streaming multiprocessors (SMs). Figure 2 illustrates our suggestion for this process.
Fig. 2

Correspondence between the BSP/CGM and the GPGPU model

The extended solution

In 2004, Alves et al. [1] presented a BSP/CGM algorithm for the maximum subsequence sum problem. This algorithm is efficient, but like the previous solutions, it does not consider the existence of more than a subsequence of maximum sum. Furthermore, since the algorithm works in a distributed environment, it performs a series of compressions that change the input sequence. This change causes difficulty in the search of more than one subsequence. On the other hand, using the ideas of the PRAM algorithm proposed by Perumalla and Deo [10], in this work we devise a new BSP/CGM parallel algorithm for this problem that uses the final output to compute the shortest/longest maximum subsequences and the total number of disjoint maximum subsequences. Figure 3 illustrates an example of the output array of Perumalla and Deo’s algorithm [10]. Through the output array, we can find all disjoint subsequences of the maximum subsequence sum problem. In this example, there are three disjoint maximum subsequences with different sizes. Next we present new BSP/CGM algorithms to solve the 1D maximum subsequence sum problem, the shortest/longest maximum subsequences, and the total number of maximum subsequences.
Fig. 3

15 is the highest value and represents the maximum sum of Q [8]

The BSP/CGM algorithm for the maximum subsequence sum

We designed a BSP/CGM solution (see Algorithm 2) that solves the basic problem of maximum subsequence sum. In the algorithm, the arrays PSUM and SSUM mean prefix sum and suffix sum, respectively. We compute the suffix maxima of PSUM and prefix maxima of SSUM and store the results in the arrays SMAX and PMAX, respectively. The output of Algorithm 2 is an array M shown in Fig. 3.

Two operations are performed in the algorithms “Maximum_Suffix_Propagation and Maximum_Prefix_ Propagation” (they are called from Algorithm 2), both consisting of a maximum propagation. The first operation occurs in the local array of each processor. In this case, higher values are propagated, replacing the smaller values. The replacement is performed until a (new) higher value is found, which then starts a new maximum propagation, as illustrated in Fig. 4. The second operation occurs between each processor and the greater value of the maximum values of the subsequent/precedent processors, as illustrated in Fig. 5. For the sake of simplicity, we present only the “Maximum_Suffix_Propagation” (Algorithm 3). The main difference of the algorithms is the direction of propagation. For the complete explanation about the variables (PSUM, SSUM, PMAX, SMAX, LocalMP, LocalMS, and LocalM), please see [10].
Fig. 4

Local operations

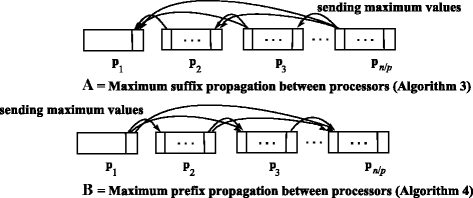

Fig. 5

Global operations

Correctness and complexity

Besides the fact that we use only p processors, the steps of our main BSP/CGM algorithm can be easily derived from the PRAM algorithm [10]. Using BSP/CGM parallel prefix algorithms, steps 1 and 2 can be computed using p processors in O(n/p) time and O(logp) communication rounds. For steps 3 and 4, we use Algorithm 3, requiring p processors with O(n/p) time and O(logp) communication rounds. Steps 5 to 7 can be computed using p processors with O(n/p) time and a constant number of communication rounds. Finally, using BSP/CGM parallel maximum reduction algorithm, step 8 is computed using p processors with O(n/p) time and O(logp) communication rounds. Therefore, Algorithm 2 computes the maximum subsequence sum correctly using p processors in O(n/p) time with O(logp) communication rounds.

The BSP/CGM algorithms for the related problems

We also developed BSP/CGM algorithms to solve three problems related to the maximum subsequence sum, that is, (1) the longest maximum subsequence sum, (2) the shortest maximum subsequence sum, and (3) the number of disjoint subsequences of maximum sum. The output of Algorithm 2 is the starting point of these three algorithms. For simplicity, the strategies of these algorithms are listed in only one algorithm, represented here by Algorithm 4.

First, using the array TransArray, we mark all the elements of array M that are equal to maxsum.

Then, we compute the array SegScan that stores the regions where the elements of M have the same value. We call this operation Segmented_Scan. We define this operation as follows: if M[i−1]=M[i] then S e g S c a n[i]←S e g S c a n[i−1]+1; otherwise, S e g S c a n[i]←1. We define S e g S c a n[0]←1.

Since we are searching the regions in M where we have maximum values, we perform a bitwise operation with the SegScan and TransArray arrays. This operation changes the SegScan array and all the elements in this array that do not correspond to the elements in M that represent the maximum subsequences become equals 0. The subarrays in SegScan that are not null are enumerated and represent the maximum sum subsequences.

The maximum subsequences and their respective sizes are easily found using parallel BSP/CGM prefix/suffix sum, reduction, and other basic algorithms.

Correctness and complexity

In order to find the maximum subsequences in M, we use basic BSP/CGM algorithms for prefix/suffix sum, Segmented Scan and Bitwise And Operation. Efficient BSP/CGM parallel algorithms for these problems can be found in Dehne at al. [4]. Figure 6 illustrates the relationship among the internal routines listed by Algorithm 4 and the solutions that can be drawn from them. The starting point is the output of Algorithm 2. Algorithm 4 computes correctly and returns the three expected values.
Fig. 6

Problems that can be solved from the output array M

Using BSP/CGM reduction algorithms, the internal routines of Algorithm 4 associated with the sizes of maximum subsequence sum can be computed using p processors in O(n/p) time and O(logp) communication rounds. Hence, the combination of Algorithms 2 and 4 yields the solution in O(n/p) time with O(logp) communication rounds.

Results

The main advantage of using the BSP/CGM model to design parallel algorithms is that when implemented in real environments, they have an expected behavior as stated by their theoretical analysis. In this work, we implemented our algorithm using both distributed and shared memory environments. The results showed that the execution times were compatible with those foreseen by the theoretical analysis.

We used a 32-node cluster of workstations and the message passing interface (MPI) to implement our algorithms in a distributed memory environment. The shared memory environment was tested with several configurations. The open multi-processing (OpenMP) implementation used workstations with 2/4/6 cores. The GPGPU/CUDA version of the algorithm was implemented using one GPU and four GPUs. Previous works have shown the good performance of BSP/CGM algorithms when implemented on clusters of workstations [1]. In this work, we use four different computing systems with shared memory, which allow us to confront our shared memory implementations against a similar distributed memory implementation. For comparison purpose, the speedups were computed using as reference the time spent by the sequential implementation in a host of the computing system were the respective parallel algorithms where executed. All the implementations showed competitive speedups.

Computational resources

We have run the experiments on five different computing systems (Table 1), with shared and distributed memory. Four of those computing systems (CS-1, CS-2, CS-3, and CS-5) use shared memory and have at least one CUDA GPU (one of them has four identical GPUs) with different specifications, which allow us to check the consistency and performance of our algorithms using shared memory environment. One of the computing systems (CS-4) is a cluster of 32 nodes connected with a Myrinet switch using 10 Gb/s Ethernet.
Table 1

Platforms—general specs

ID

Processor

Clock

Cores/threads

RAM/cache

Linux/dist./GCC

CS-1

Xeon E5-2620

2.00

6/12

16/15

CentOS 7.2/3.10.0 / 4.8.5

CS-2

Core i7-3770

3.40

4/8

8/8

Ubuntu 12.04/3.2.0-37/4.6.3

CS-3

Core2 Quad Q9550

2.83

4/4

4/6

Ubuntu 15.04/3.19.0-15/4.9.2

CS-4

Xeon E5620

2.40

4/8

8/12

CentOS 6.8/2.6.32/4.4.7

CS-5

Core i7-4500U

1.80

2/4

8/4

Ubuntu 15.04/3.19.0/4.9.2

The technical specifications of the computing systems are depicted in Tables 1, 2, and 3. All the processors use 64–bit architecture. The clock frequency is given in GHz, the cache memory in MB, and the RAM memory in GB.
Table 2

Platforms—CUDA specs

ID

GPU (NVidia)

# GPUs

RAM

# SMs

Cuda cores

Clock

GPU arch/SDK

CS-1

GTX TITAN Black

4

6

15

2880

889

3.5/7.5

CS-2

GTX 680

1

2

8

1536

1006

3.0/4.2

CS-3

GTX 460 v2

1

1

7

336

778

2.1/7.5

CS-5

GT 720M

1

2

2

192

797

2.1/7.5

Table 3

Platforms—MPI specs

ID

Cluster

# Nodes/threads

# MPI proc.

mpicc

Comm.

CS-4

Cluster Rocks 6.0 (Mamba)

46/8

368

4.4.7

Myrinet 10 Gb/s

Execution methodology

We used randomly generated data for input arrays varying from 220 to 229 elements. For each input, we ran the experiment 20 times and measured the average running time. To make sure that such an average is representative of the expected value, we apply the Shapiro-Wilk [14] statistical test to the 20 times obtained, and we tolerate the discarding of five values, thereby resulting in a minimum of 15 and a maximum of 20 valid values to compute the average. The result of the statistical test (P value) has to be greater than α>0.05, so that we can assert with significance level of 5 % that the sample derives from a normal population. In case the statistical test gives α≤0.05, the sample is discarded and new running times are collected for that input.

The algorithms were tested in the distributed memory environment CS-4 using MPI. In this environment, we can specify the number of nodes and their respective processors to be allocated for the execution, in the form of N X:P Y (X nodes, with Y processors each).The configuration N32:P8 means that we used 32 nodes of the cluster, each with 8 threads, with a total of 256 MPI processes. We executed our algorithm with the following configurations: N16:P1, N16:P2, N16:P4, N16:P8, N32:P1, N32:P2, N32:P4, and N32:P8.

In the shared memory environment, we used OpenMP and CUDA. The CUDA implementation of the algorithms were executed on CS-1, CS-2, CS-3, and CS-5 platforms. In the CS-1 platform, we also varied the number of GPUs, where we used 1, 2, and 4 GPU configurations. The OpenMP implementation was executed in all platforms. We tested the OpenMP implementation with different numbers of threads. In all platforms, we used 1, 2, and 4 threads, while we also tested with 8 threads in the CS-1, CS-2, and CS-4 and with 12 threads in the CS-1.

A sequential version of the algorithm, with the related problems, was implemented using C. This implementation was executed in all platforms. The speedups of the parallel versions were computed using the execution time of the sequential implementation of the algorithms in the respective platform as reference.

Due to the exponential variation of the input values (with 220n≤229), all the curves use the logarithmic scale (base 2) as the horizontal axis. Vertical axis (runtime and speedup) uses logarithmic scale (base 10) for better presentation and visualization.

Results

Now we present the results that were obtained using the five computing systems. First we present the execution times of the sequential version of the algorithms. As we stated above, we implemented it on all platforms in order to compute the respective speedup in each computer system.

Sequential implementation

We developed a sequential version of the Perumalla and Deo parallel algorithm [10], and we extended the sequential version for solving the related problems. The complete algorithm has O(n) time complexity. It was implemented on all platforms.

Figure 7 and Table 4 show the behavior of the algorithm on each platform. We observe that when the input size reaches the resource limits of the platform, the execution results stop obeying the expected curve of the execution times. This phenomenon is called Thrashing [5]. It occurs because of the constant paging, which degrades the complete system performance. In some cases, it freezes the system. In some tests, the operating system killed the process and we could not collect the result. In these cases, if the time was collected, it would be equivalent or worse than that when the thrashing phenomenon occurs.
Fig. 7

Running times (milliseconds) of sequential implementation

Table 4

Running times (milliseconds) of sequential implementation

n

CS-5

CS-4

CS-1

CS-3

CS-2

220

35.811

71.143

57.314

59.100

31.517

221

69.225

141.295

110.836

114.250

62.986

222

135.859

283.747

219.730

225.275

126.487

223

284.376

636.522

531.464

502.136

250.795

224

543.696

1305.605

1063.938

1005.549

501.978

225

1225.326

2492.813

2114.072

2005.769

1004.222

226

2186.893

6825.944

4105.771

4012.655

2022.964

227

4985.319

8272.913

16,682.755

4030.542

228

18,931.466

20,327.877

229

42,466.062

MPI implementation

We developed a version of the BSP/CGM algorithms for distributed memory. This version was implemented with MPI and uses the resources of MPI which includes a number of library functions for communication and synchronization among all members of a process group.

The sequence is divided in p subsequences s i ,1≤ip of size n/p. Each processor p i (1≤ip) receives the subsequence s i and compute the algorithm locally. The partial solutions (boundaries) are exchanged using built-in functions of the MPI. The details of the code can be seen in https://github.com/rodrigogbranco/extendedmss.

Figure 8 and Table 5 show the average execution times. We executed the MPI implementation using 16 and 32 nodes with different numbers of threads.
Fig. 8

CS-4 running times (milliseconds) of MPI implementation

Table 5

CS-4 running times (milliseconds) of MPI implementation

n

N16:P1

N16:P2

N16:P4

N16:P8

N32:P1

N32:P2

N32:P4

N32:P8

220

10.730

11.403

9.788

91.368

11.597

19.765

21.263

119.741

221

21.403

15.286

12.880

83.876

16.562

21.004

18.488

79.335

222

99.957

23.938

18.761

16.064

24.395

25.461

21.225

23.279

223

82.786

40.277

29.675

21.406

45.941

33.450

26.846

28.399

224

175.851

75.340

51.073

33.305

82.706

52.493

38.760

33.242

225

357.882

139.970

90.844

53.800

146.140

93.536

59.839

46.379

226

748.831

263.430

161.765

100.714

263.629

164.268

93.531

66.719

227

1546.020

559.685

307.145

171.782

555.407

288.917

170.073

111.906

228

1331.303

2356.562

314.681

854.059

426.578

317.116

203.811

229

24,301.072

4174.692

17,766.883

We can see that when the input is not big enough, there is a communication overhead. This depends on the number of used nodes and impacts the execution times. After a given size of the input, the execution times present a linear behavior (in each processor the time complexity is O(n/p)). When the size of the input is too big, the thrashing phenomenon occurs again. In some cases, such as N16:P1, the operating system/cluster management aborted the application with input sizes of n=228 and n=229.

OpenMP implementations

Using the ideas of the distributed memory BSP/CGM algorithms that were implemented with MPI, we implemented them in a shared memory environment using OpenMP (Table 6 and Fig. 9). The main difference was that the message exchange among the processes (threads) was done in the memory of the workstations. We used the OpenMP directives to create and eliminate threads and shared arrays and schedule functions. When supported by the compilers, we used directives for array reduction. The details of the code can be seen in https://github.com/rodrigogbranco/extendedmss.
Fig. 9

Running times (milliseconds) of OpenMP implementation

Table 6

Running times (milliseconds) of OpenMP implementation

n

CS-5 4T

CS-4 8T

CS-1 12T

CS-3 4T

CS-2 8T

220

23.917

28.162

13.353

27.371

9.412

221

45.392

50.601

26.081

53.049

17.390

222

91.215

100.928

46.429

107.229

34.647

223

175.983

210.809

84.330

215.435

69.902

224

332.776

471.320

157.892

457.911

137.247

225

684.553

860.291

297.038

911.215

274.483

226

1406.760

1620.361

614.651

1816.237

539.597

227

3018.799

1355.126

5835.837

1103.898

228

5855.649

2362.273

2188.595

229

7082.654

5,169,643.376

The shared memory implementation of the BSP/CGM algorithms with OpenMP shows a linear curve on all platforms. This confirms the theoretical complexity of the BSP/CGM algorithms, which have O(n/p) time complexity in each computation round. The phenomenon of thrashing and the finalization of the execution for the operating system was also observed for some large inputs. Besides the good speedups that we obtained for the BSP/CGM algorithms with OpenMP, the execution times of the cluster platform (CS-4) were smaller. This leads us to explore another shared memory environment, the GPGPU with CUDA.

Multi-GPU implementation

One of the goals of this work is to show that the BSP/CGM model is suitable for designing parallel algorithms for distributed and shared memory alike. Besides that, we also want to show that the BSP/CGM algorithms can be implemented in GPGPUs with good speedups. In order to verify the efficiency of the algorithm in the GPGPUs environment, we tested it with four different configurations. One of the configurations is a multi-GPGPU with four devices (GPUs).

Differently from the MPI and OpenMP environments, the implementation of a BSP/CGM algorithm using CUDA/GPGPU has a higher level of complexity. For this reason, in this section, we choose to present a step by step description of the parallel implementation of the 1D maximum subsequence sum and the related problems using CUDA/GPGPU. The details of the code can be seen in https://github.com/rodrigogbranco/extendedmss.

Figure 2 shows how we can map a BSP/CGM algorithm onto a GPGPU. The computation rounds are done by the SMs. The computation is executed by sets of blocks of threads. Each thread runs a copy of the same program in the GPGPU (kernel function).

We implemented our algorithm in the GPGPU using CUDA. With CUDA, a kernel function specifies the code to be executed by all threads in a parallel step (computation round). When a kernel is called, or launched, it is executed as a grid of thread blocks in parallel. Each thread block is scheduled separately for a SM. Threads within the same block are organized in units of 32 threads, called warps [13]. To maximize even further the performance, CUDA uses different memory types. Each memory is used for different purposes. The shared memory, for example, is used to exchange data between threads within a CUDA block [13]. When a kernel finishes its computation, we have a synchronization. After that, we have a new round or the program finishes.

First we describe the steps of our implementation that uses only one GPGPU.

As shown in Table 7, we used the Thrust Library [6] extensively, including the device vector (using thrust::device_vector) and host vector (using thrust::host_ vector) when implementing Algorithms 2 and 4 with CUDA. These types of vectors were chosen to simplify the use of optimized Thrust functions, and also the memory transfers between device-host and vice-versa. Now we detail the CUDA implementation steps of Algorithms 2 and 4.
Table 7

Thrust and CUDA functions used by Algorithms 2 and 4

Algorithm

Steps

Thrust function

Algorithm 2

(1) PSUM (2) SSUM

thrust::inclusive_scan

Algorithm 2

(1) PSUM (2) SSUM

thrust::for_each (to correct borders - multi-GPUs)

Algorithm 2

(3) SMAX (4) PMAX

thrust::inclusive_scan

Algorithm 2

(3) SMAX (4) PMAX

thrust::for_each (to correct borders - multi-GPUs)

Algorithm 2

(7) Compute array M

thrust::transform

Algorithm 2

(8) Maximum reduction

thrust::reduce

Algorithm 4

(2) Transformation

thrust::for_each

Algorithm 4

(7) Segmented scan

thrust::inclusive_scan_by_key

Algorithm 4

(8) Bitwise and operation

thrust::transform, thrust::find

Algorithm 4

(8) Bitwise and operation

thrust::for_each (to correct borders - multi-GPUs)

Algorithm 4

(12) Find related solutions

findRelatedSolutions (Custom Kernel)

Synchronization

__syncthreads (threads)

Synchronization

cudaDeviceSynchronize (blocks and device-host)

Steps 1 and 2 (Sum of Prefixes and Sum of Suffixes): In order to solve steps 1 and 2, we used thrust::inclusive_scan. We used the reverse iterator of thrust::device_vector to iterate and compute sum of suffixes transparently.

Steps 3 and 4 (Maximum Suffix Propagation and Maximum Prefix Propagation): These steps follow the same idea of steps 1 and 2 but using thrust::maximum rather than the default thrust::plus used on thrust::inclusive_scan.

Steps 5–9: To build the output array M, some arithmetic operations involving the initial four arrays were needed. For that, we used the function thrust::transform to operate individually on each element of array.

Step 10: To solve this step, we used thrust::reduce using thrust::maximum.

At the beginning of Algorithm 4, we built the TransArray using thrust::for_each, with a custom function operation to manipulate the individual elements. So, in that function we passed the maxsum and, if the element was equal to it, then it would receive –1 value and 0 otherwise. We built a new array using TransArray, applying the Segmented_Scan offered by Thrust through thrust::inclusive_scan_by_key (see Fig. 6).

With both TransArray and SegScan ready, we applied the bitwise and operation (&) using thrust::transform and thrust::bit_and. Finally, we built a CUDA kernel to process the last part of Algorithm 4 (quantity of maximum subsequence sum, longest subsequence, and shortest subsequence).

Our CUDA implementation with more than one GPU works on the same host. Therefore, in order to manage each GPU transparently, we used OpenMP, and each thread was responsible for managing its own GPU. It is important to note that here OpenMP is being used only to manage the GPUs and run the synchronization among them through the function cudaDeviceSynchronize() (GPU-host synchronization), followed by the directive #pragma omp barrier (synchronization among threads).

When the algorithm was implemented in a multi-GPU system, we had to take care of some details. After the end of some steps of a GPU we need to do some extra work, since each GPU works with a n/(# g p u s) partition of the array M[1…n]. The same occurs for the arrays PSUM and SSUM. After the GPU finalizes each of steps 1 and 2 of Algorithm 2, they need to correct their array borders. Those corrections can be done by using the shared memory of the host with the function thrust::for_each. At the end of steps 3 and 4, the first element of arrays PMAX and SMAX may need to be corrected too. This also is done with the function thrust::for_each. Algorithm 4 uses the function thrust::for_each after step 8 to correct the borders too. In the last step, each GPU sends its three values (quantity of maximum subsequence sum, longest subsequence, and shortest subsequence) to the host that will compute the final solution.

Now we describe some strategies that we used in the implementation. To make a better use of the GPU, two techniques were utilized: persistent threads and efficient communication among SPs. A kernel was launched with the number of blocks of threads as a multiple of the amount of blocks executed concurrently in each SM. Since a SM can process one or more blocks of threads simultaneously, we avoid blocks of threads staying in the scheduling queue. As a consequence, each block of threads stay persistent and can operate on more than one part of the input, when this input is larger than the grid of blocks of the kernel. The multiplicity of the amount of blocks of threads selected was two times the number of SMs. This choice was based on the experiments using the profile nvprof, that obtained the best result, achieving 95 % of occupancy.

The use of efficient communication among the SPs is related to the SIMD functionality offered by the latest versions of GPUs. This functionality allows that SPs within an SM communicate through the shared memory and without synchronization, simply using registers. A second implementation was created for older versions of GPUs (capability <3.0) by using communication through the shared memory and synchronizations.

We also exploited the memory hierarchy of the GPU by moving data from global memory to shared memory (and registers) so as to promote coalesced access and avoid the high costs associated with global memory. The thread’s resource utilization was kept low, thus permitting more threads to be used per block and a full occupation the GPU SMs.

Finally, the optimized thrust::reduce was used to perform the reductions between blocks, finding the results for a single GPU. Each GPU sent its results to host for final reductions. It was possible to take advantage of memory coalescing and thereby achieve good performance results.

The running times of the CUDA GPU implementations are presented in Fig. 10 and Table 8. As in the MPI implementation, it is possible to observe some overhead for the first inputs when more than one GPU is used in the execution. However, starting from the input size n=224, we can note that this overhead decreases significantly. A curiosity relative to the other implementations is the fact that the thrashing phenomenon does not occur here. The explanation for this is that the memory of the GPUs is stressed in this situation and, on reaching the limit of its capacity, the GPU driver informs the impossibility to continue and the execution is aborted. Therefore, the main memory, in those positions used by the application, is not paged and, for this reason, the thrashing phenomenon is not verified.
Fig. 10

Running times (milliseconds) of CUDA implementation

Table 8

Running times (milliseconds) of CUDA implementation

n

CS-1 4GPUs

CS-1 2GPUs

CS-1 1GPU

CS-3

CS-5

CS-2

220

9.033

10.338

4.040

4.701

19.220

2.650

221

15.794

12.300

5.194

7.839

36.470

4.310

222

15.661

14.138

7.456

14.254

71.342

7.662

223

15.053

16.320

11.999

27.1798

139.110

14.505

224

16.036

17.480

20.913

53.415

304.978

28.348

225

23.632

31.100

39.653

573.287

56.360

226

30.764

56.451

76.051

227

55.126

92.363

149.896

228

103.174

178.439

229

204.072

Best running times of each implementation and speedups

Figure 11 and Table 9 present the best running times for each of the implementations (OpenMP, MPI, and CUDA). Since the configurations of the Platform CS-1 is a 4-GPUs system, we can already expect that the best running times of the implementations occur in this environment. The results show the scalability of the algorithm and the implementations presented: the addition of more threads/nodes/GPUs tends to present superior results.
Fig. 11

Best running time (milliseconds) of each implementation

Table 9

Best running time (milliseconds) of each implementation

n

CS-1 OMP 12T

CS-4 N32:P8

CS-1 CUDA 4GPUs

220

13.353

119.741

9.033

221

26.081

79.335

15.794

222

46.429

23.279

15.661

223

84.330

28.399

15.053

224

157.892

33.242

16.036

225

297.038

46.379

23.632

226

614.651

66.719

30.764

227

1355.126

111.906

55.126

228

2362.273

203.811

103.174

229

7082.654

17,766.883

204.072

In order to show the speedups, we computed them with respect to each platform. Figure 12 and Tables 10 and 11 present the speedups relative to the sequential and parallel implementation executed in the same platform. We can see that the OpenMP implementations, in general, tend to preserve the speedup with little variation, as well as the CUDA implementations with GPUs cards of lower performance. The exceptions are implementations CS-1 CUDA 4GPUs and CS-4 N32:P8, for which we can observe speedups of approximately 102 times for the MPI implementation and approximately 208 times for the multi-GPU CUDA version.
Fig. 12

Speedups—parallel/sequential in the same platform

Table 10

CS-4 running times (milliseconds) of MPI implementation

n

CS-5 OMP 4T

CS-5 CUDA

CS-4 OMP 4T

CS-4 N32:P8

CS-3 OMP 4T

CS-3 CUDA

220

1.497

1.863

2.526

0.594

2.159

12.570

221

1.525

1.898

2.792

1.780

2.153

14.572

222

1.489

1.904

2.811

12.188

2.100

15.803

223

1.615

2.044

2.811

22.413

2.330

18.474

224

1.633

1.78

3.019

39.274

2.195

18.824

225

1.789

2.137

2.770

53.748

2.201

226

1.554

2.897

102.308

2.209

227

1.651

4.212

2.858

228

229

Table 11

Speedups—parallel/sequential in the same platform - II

n

CS-2 OMP 8T

CS-2 CUDA

CS-1 OMP 12T

CS-1 CUDA



4GPUs

220

3.348

11.893

4.292

6.344

221

3.621

14.610

4.249

7.017

222

3.650

16.508

4.7322

14.030

223

3.587

17.289

6.302

35.305

224

3.657

17.707

6.738

66.345

225

3.658

17.817

7.117

89.454

226

3.749

6.679

133.460

227

3.651

6.104

150.070

228

9.288

8.014

183.489

229

5.995

208.092

The platforms and equipments available were not sufficient to discover how many MPI processes (nodes and processes per node) would be sufficient to reach the speedup of the Multi-GPU implementation, due to the limitations in the submission of jobs to the cluster.

All source codes of the implementations can be found at https://github.com/rodrigogbranco/extendedmss.

Conclusions

There are good sequential and parallel solutions to the problem of maximum subsequence in the literature. However, they consider only one subsequence of maximum sum for each input sequence. Therefore, to circumvent this shortcoming, we developed BSP/CGM parallel algorithms that consider the simultaneous existence of more than one maximum subsequence sum.

Furthermore, our algorithms can find solutions for three new related problems: the maximum longest subsequence sum, the maximum shortest subsequence sum, and the number of disjoints subsequences of maximum sum. To the best of our knowledge, there are no parallel algorithms for these related problems. The algorithms work for shared and distributed memory and were implemented using a multi-GPU/CUDA, OpenMP, and MPI.

In the design of our algorithms, we use the BSP/CGM model of parallel computing. It is well known that this model is suitable for designing parallel algorithms for distributed memory platforms. In this work, we showed good results when mapping our BSP/CGM algorithms to shared memory platforms. The implementations of the proposed algorithms were shown to be efficient and have good speedup results, as confirmed by experimental results. The running times of the MPI and CUDA implementations are several times better than the sequential solution in the respective platform. Furthermore, the CUDA implementation can easily be implemented with one or several GPUs.

The proposed algorithms use p processors and require O(n/p) parallel time with a constant number of communication rounds for the algorithm of the maximum subsequence sum and O(logp) communication rounds, with O(n/p) local computation per round, for the algorithms of the related problems.

The results obtained lead us to believe that the proposed algorithms are scalable, since the addition of processing elements in the platforms has not yet reached the saturation point. This means that the addition of threads/nodes/processors/GPUs in the respective platforms can increase the speedup significantly. Unfortunately, the available platforms do not allow us to reach the saturation point, since problems related to the limitation of the available resources have appeared, such as Thrashing and the elimination of the process by the operating system.

The results also showed the efficiency of the multi-GPU version, even for large sizes of the input data. Our implementation supported up to 229 elements with good running times, that is, supported more than 500 million elements as the input of the problem.

As future work, we intend to extend the multi-GPU implementation to solve the maximum sum subarray problem, with more than one dimension (2D and 3D problems). We also intend to compute all the maximal subsequences in a given interval.

Declarations

Acknowledgements

The authors thank FUNDECT, FAPEG, FAPESP (2013/26644-1), CNPq (482736/2012-7, 302620/2014) and Capes/PVE 002/2012 and NVIDIA. Thanks are also due to the anonymous referees for their comments and suggestions.

Authors’ contributions

ACL, RAG, ENC, WSM, and SWS worked on the model proposal and the design, correctness, and complexity of the algorithms. RAG, ACL, RGB, and SF worked on the implementation details of the algorithms. All authors read and approved the final manuscript.

Competing interests

The authors declare that they have no competing interests.

Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License(http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
Faculdade de Computação da Universidade Federal de Mato Grosso do Sul
(2)
Instituto de Informática da Universidade Federal de Goiás
(3)
IME, Universidade de São Paulo

References

  1. Alves CER, Cáceres EN, Song SW (2004) BSP/CGM algorithms for maximum subsequence and maximum subarray In: Recent Advances in Parallel Virtual Machine and Message Passing Interface, volume 3241 of Lecture Notes in Computer Science, 139–146.. Springer, Berlin Heidelberg.Google Scholar
  2. Bentley J (1984) Programming pearls: algorithm design techniques. Commun ACM 27(9): 865–873.MathSciNetView ArticleGoogle Scholar
  3. Dehne F, Fabri A, Rau-chaplin A (1994) Scalable parallel computational geometry for coarse grained multicomputers. Int J Comput Geom 6: 298–307.MathSciNetMATHGoogle Scholar
  4. Dehne F, Ferreira A, Cáceres EN, Song SW, Roncato A (2002) A efficient parallel graph algorithms for coarse grained multicomputers and BSP. Algorithmica 33(2): 183–200.MathSciNetView ArticleMATHGoogle Scholar
  5. Denning PJ (1968) Thrashing: its causes and prevention In: Proceedings of the December 9-11, 1968, Fall Joint Computer Conference, Part I. AFIPS ’68 (Fall, part I), 915–922.. ACM, New York. doi:http://dx.doi.org/10.1145/1476589.1476705.
  6. Hwu W-MW (2011) GPU Computing Gems Jade Edition. 1. Morgan Kaufmann Publishers Inc, San Francisco.Google Scholar
  7. Ladner RE, Fischer MJ (1980) Parallel prefix computation. J ACM 27(4): 831–838.MathSciNetView ArticleMATHGoogle Scholar
  8. Lima AC, Branco RG, Cáceres EN, Gaioso RA, Ferraz S, Martins WS, Song SW (2015) Efficient BSP/CGM algorithms for the maximum subsequence sum and related problems. Int Conf Comput Sci ICCS: 2754–2758.Google Scholar
  9. Marcus SL, Brumell SL, Pfeifer CG, Finlay BB (2000) Salmonella pathogenicity islands: big virulence in small packages. Microbes Infect 2(2): 145–156.View ArticleGoogle Scholar
  10. Perumalla K, Deo N (1995) Parallel algorithms for maximum subsequence and maximum subarray. Parallel Process Lett 5: 367–363.View ArticleGoogle Scholar
  11. Qiu K, Akl SG (1999) Parallel maximum sum algorithms on interconnection networks. Technical report, Queens University Dept. of Com., Ontario.Google Scholar
  12. Ruzzo WL, Tompa M (1999) A linear time algorithm for finding all maximal scoring subsequences In: Proceedings of the 7th International Conference on Intelligent Systems for Molecular Biology, 234–241.. AAAI Press.Google Scholar
  13. Sanders J, Kandrot E (2011) CUDA by example: an introduction to general-purpose GPU programming. Ed 1. Addison-Wesley, USA.Google Scholar
  14. Shapiro SS, Wilk MB (1965) An analysis of variance test for normality (complete samples). Biometrika3–4(52): 591–611.MathSciNetView ArticleMATHGoogle Scholar
  15. Valiant LG (1990) A bridging model for parallel computation. Commun ACM 33: 103–111.View ArticleGoogle Scholar
  16. Wen Z (1995) Fast parallel algorithms for the maximum sum problem. Parallel Comput 21(3): 461–466.MathSciNetView ArticleMATHGoogle Scholar

Copyright

© The Author(s) 2016
